TEKOFLEX TF10 | Tekon

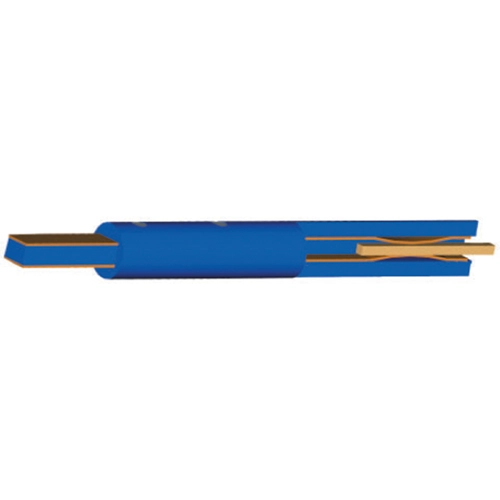

Test contact for four-wire measurement, round head, travel 0.8 mm, pitch 2.54 mm, L 22.5 mm, TEKOFLEX TF10
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
15.4819 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
15.48 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4819 €
25 pcs.
14.2205 €
50 pcs.
13.3875 €
100 pcs.
12.5426 €
500 pcs.
11.7096 €
*incl. VAT plus shipping costs
Subject to prior sale
Contacting systems for four-wire measurements, type Tekon Tekoflex.
For 4-point measurements on contact pins with a diameter of 0.64 to 1.5 mm and 2.54 mm grid; Contacts: gold-plated CuBe. Maximum surge pulse load: 10 A. Useful life: min. 100000 insertion and removal cycles. Contact resistance: <30 mohm.
Technical attributes (type, rated size, mounting hole, connection pin): TF10, 1.0, 2.3, 0.95 to 1.0 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Head shape | round head | |
| Rated current | 10 A | |
| Stroke | 0.8 mm | |
| Grid | 2.54 mm | |
| Length | 22.5 mm | |
| Material | copper beryllium |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90319000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
