WALL2.23 SCHWARZ/GRAU | Teko
ABS enclosure, (L x W x H) 122.5 x 69.5 x 43.1 mm, gray/black, WALL2.23 SCHWARZ/GRAU
Unit Price (€ / pc.)
5.9976 € *
Standard delivery time from the manufacturer is: On Request

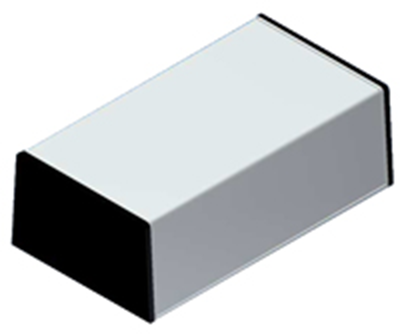

Plastic enclosures, type Teko Wall.
Consist of top and base shell, with integrated guides. Can be assembled without screws; Material: ABS. Color: black (RAL 9004), gray-white (RAL 9018).
With black base shell and white top shell, type Wall 2.23.

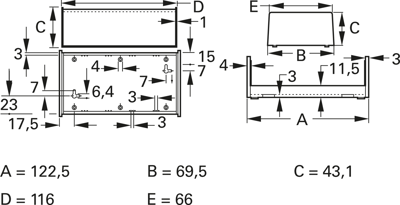

Technical attributes (type, outer dimensions): Wall 2.23, A 122.5, B 69.5, C 43.1, D 116, E 66 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray/black | |
| Width | 69.5 mm | |
| Height | 43.1 mm | |
| Material | ABS | |
| Length | 122.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
