TENCLOS 560.9 SCHWARZ | Teko

ABS enclosure, (L x W x H) 145 x 85 x 31 mm, black (RAL 9004), TENCLOS 560.9 SCHWARZ

Order No.: 60H622
EAN: 8018340306029
MPN:
TENCLOS 560.9 SCHWARZ
Series: TENCLOS

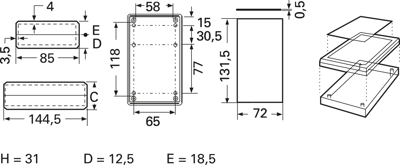

TENCLOS 560.9 SCHWARZ Teko General Purpose Enclosures Image 1

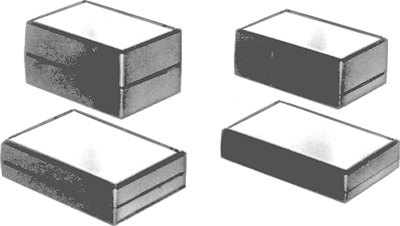

TENCLOS 560.9 SCHWARZ Teko General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
13.2685 € *
Available: 40 pcs.
Total Price:
13.27 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2685 €
10 pcs.
11.6858 €
50 pcs.
10.8766 €
150 pcs.
10.4125 €
500 pcs.
9.8651 €
*incl. VAT plus shipping costs
Subject to prior sale

ABS enclosure, TENCLOS 560.9 SCHWARZ, Teko

ABS enclosures with a recessed area to allow an 0.5 mm anodised aluminium panel. Base and cover have integral PCB mounting studs. This product has cutouts for three connectors DB25. Matt surface finish. Closing by four screws.

Technical specifications
Colour black
Length 145 mm
RAL number 9004
Height 31 mm
Width 85 mm
Material ABS
Logistics
Customs tariff number 39269097
Country of origin IT
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
