SNAP 10005.5 GRAU | Teko
ABS enclosure, (L x W x H) 199.5 x 110 x 56.5 mm, gray (RAL 9018), SNAP 10005.5 GRAU
Unit Price (€ / pc.)
21.6461 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
21.65 € *
Price list
Quantity
Price per unit*
1 pcs.
21.6461 €
10 pcs.
19.0519 €
50 pcs.
17.7548 €
150 pcs.
16.9694 €
500 pcs.
16.1007 €
*incl. VAT plus shipping costs
Subject to prior sale
ABS enclosure, SNAP 10005.5 GRAU, Teko

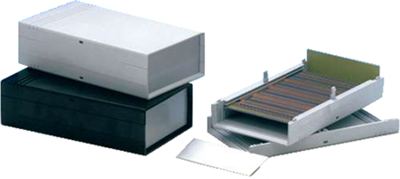

ABS enclosure with two 1 mm aluminium panels. Each base and cover have integral PCB guides (Eurocard 100 x 160 mm) inside. Mattsurface finish. Snap-together closing, no screws required.

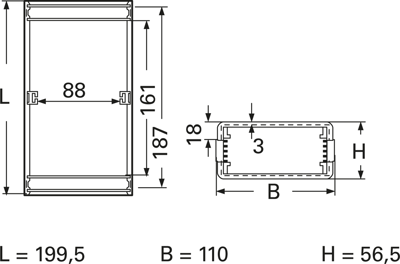

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 199.5 mm | |
| Colour | gray | |
| Width | 110 mm | |
| RAL number | 9018 | |
| Height | 56.5 mm | |
| Material | ABS |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
