IO-TEK1.30 | Teko

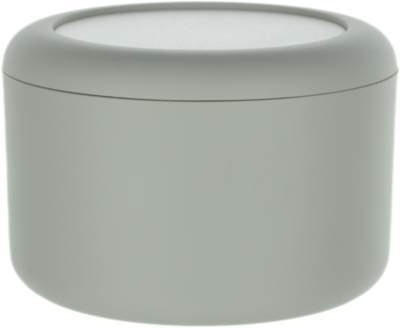

ABS enclosure, (L x W x H) 65 x 65 x 43.6 mm, light gray/white (RAL 9002), IP65, IO-TEK1.30
Unit Price (€ / pc.)
15.3629 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
15.36 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3629 €
10 pcs.
13.8397 €
50 pcs.
13.1376 €
100 pcs.
12.4831 €
*incl. VAT plus shipping costs
Subject to prior sale
Hand-held case, IO-TEK1.30, TEKO
This case is ideal for environment monitoring and setting user interface.
Features
- Internal slots and pillars for easy and multiple PCB assembly
- Fast closing by 3 screws nicely hidden from a top ring element
- The excellent sealing system guarantees an IP65 protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS | |
| Length | 65 mm | |
| Width | 65 mm | |
| Height | 43.6 mm | |
| Colour | light gray/white | |
| RAL number | 9002 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
