932 C.5 GRAU | Teko

ABS enclosure, (L x W x H) 178 x 131.5 x 54 mm, gray/black, IP40, 932 C.5 GRAU

Order No.: 60H3146
EAN: 4099889519662
MPN:
932 C.5 GRAU
Series: EURO 93C

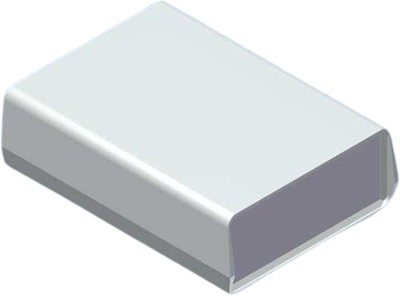

932 C.5 GRAU Teko General Purpose Enclosures Image 1
932 C.5 GRAU Teko General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
18.7306 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
18.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
18.7306 €

Plastic enclosures, type Teko Euro 93.

Consists of two ABS shell halves with dull and scratch-proof finish, as well as anodized aluminum front panels. The base shell is equipped with slip.proof bumpers; Front-panel thickness: 1.0 mm. Color: gray (RAL 9018).

With guides for 100 x 160 mm Euro-style boards, type C.

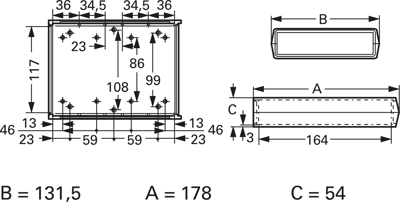

Technical attributes (type, dimensions): 932-C.5, W 131.5, D 178, H 54 mm.

Technical specifications
Colour gray/black
Degree of protection (IP) IP40
Width 131.5 mm
Height 54 mm
Length 178 mm
Material ABS
Logistics
Country of origin IT
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
