780 B.9 SCHWARZ | Teko

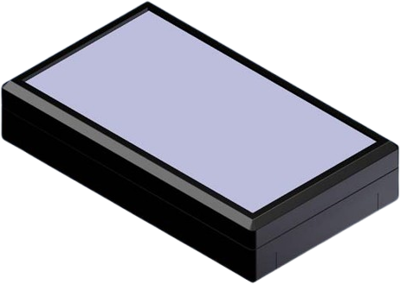

ABS enclosure, (L x W x H) 145 x 85 x 31 mm, black, 780 B.9 SCHWARZ
Unit Price (€ / pc.)
16.0412 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
16.04 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0412 €
10 pcs.
14.1253 €
50 pcs.
13.1614 €
150 pcs.
12.5783 €
500 pcs.
11.9357 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic enclosures, type Teko Tenclos.
Dull ABS top and base shell and 0.5 mm anodized aluminum panel which is fitted into the slightly lowered area of the top and which can be labeled by screen-printing. The enclosure is locked with four screws; Base dimensions: length (A) 144.5 mm, width 85.0 mm. Color: black.
With battery compartment in the base shell, type Tenclos B.
With snap-on battery compartment lid. Compartment for one 9.0-V battery or two 1.5-V Mignon cells.
Technical attributes (type, overall height (H/sketch dimension C), height base shell (D)/top shell (E)): 780, H 31 mm, D 18.5/E 12.5 mm.
Technical specifications
| Width | 85 mm | |
| Colour | schwarz | |
| Height | 31 mm | |
| Length | 145 mm | |
| Material | ABS |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
