764.9 SCHWARZ | Teko

ABS enclosure, (L x W x H) 268 x 216 x 108.5 mm, black, 764.9 SCHWARZ

Order No.: 60H825
EAN: 4099889546330
MPN:
764.9 SCHWARZ
Series: STURMENTALIA

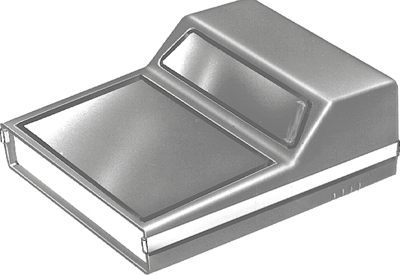

764.9 SCHWARZ Teko Consoles and Desktop Enclosures Image 1
764.9 SCHWARZ Teko Consoles and Desktop Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
57.6674 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
57.67 € *
Price list
Quantity
Price per unit*
1 pcs.
57.6674 €
10 pcs.
51.8959 €
50 pcs.
49.2779 €
100 pcs.
46.8146 €
*incl. VAT plus shipping costs
Subject to prior sale

ABS enclosures, type Teko Strumentalia.

Two-piece housing with two glossy control and display areas, each with 2.0 mm front and rear end panel. The base is equipped with mounting studs for PCBs and modules; Material: ABS. Color: black top and base shell. Gray front and rear end panels.

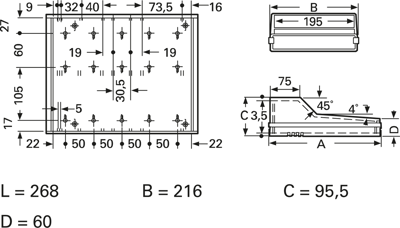

Technical attributes (type, overall dimensions (L/sketch dimension A, H/sketch dimension C)): 764.9, L 268, W 216, H 108.5, D 60 mm

Technical specifications
Colour black
Width 216 mm
Height 108.5 mm
Length 268 mm
Material ABS
Logistics
Country of origin IT
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
