763.9 SCHWARZ | Teko

ABS enclosure, (L x W x H) 268 x 216 x 95.5 mm, black, 763.9 SCHWARZ

Order No.: 60H824
EAN: 4099889546323
MPN:
763.9 SCHWARZ
Series: STURMENTALIA

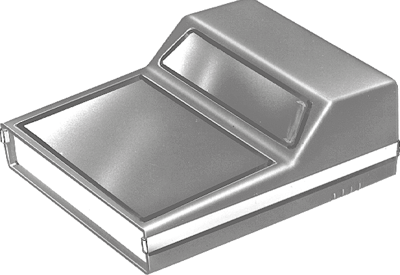

763.9 SCHWARZ Teko Consoles and Desktop Enclosures Image 1
763.9 SCHWARZ Teko Consoles and Desktop Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
47.6952 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
47.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
47.6952 €

ABS enclosures, type Teko Strumentalia.

Two-piece housing with two glossy control and display areas, each with 2.0 mm front and rear end panel. The base is equipped with mounting studs for PCBs and modules; Material: ABS. Color: black top and base shell. Gray front and rear end panels.

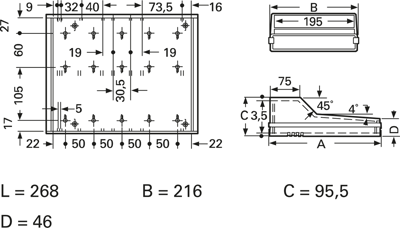

Technical attributes (type, overall dimensions (L/sketch dimension A, H/sketch dimension C)): 763.9, L 268, W 216, H 95.5, D 46 mm

Technical specifications
Colour black
Width 216 mm
Height 95.5 mm
Length 268 mm
Material ABS
Logistics
Country of origin IT
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
