103.5 GRAU | Teko
ABS enclosure, (L x W x H) 160 x 96 x 60.5 mm, gray, 103.5 GRAU
Unit Price (€ / pc.)
15.9341 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.93 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9341 €
10 pcs.
14.3395 €
50 pcs.
13.6136 €
100 pcs.
12.9353 €
*incl. VAT plus shipping costs
Subject to prior sale

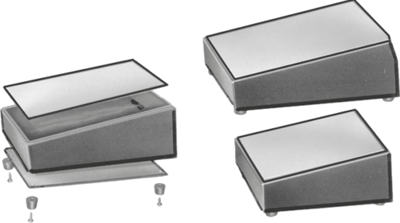

Console enclosures made of plastic, type Teko Pult 10.
ABS shell, with insertable 0.5 mm aluminum desk plate. Housing with four PCBs racks and four screw-on and slip-proof feet. Glossy finish; Color: black (RAL 9004) or gray (RAL 9018).

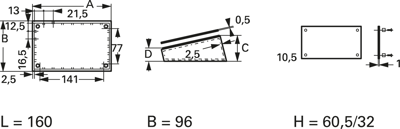

Technical attributes (type, overall dimensions (L/sketch dimension A, H rear/front, sketch dimension C/D), color): 103.5, L 160, W 96, H 60.5/32 mm, gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 96 mm | |
| Colour | gray | |
| Length | 160 mm | |
| Material | ABS | |
| Height | 60.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
