VEV107M6R3S0ANC01K | Teapo
Electrolytic capacitor, 100 µF, 6.3 V (DC), ±20 %, SMD, Ø 5 mm, VEV107M6R3S0ANC01K
Unit Price (€ / pc.)
0.2011 € *
Standard delivery time from the manufacturer is: 30 Weeks

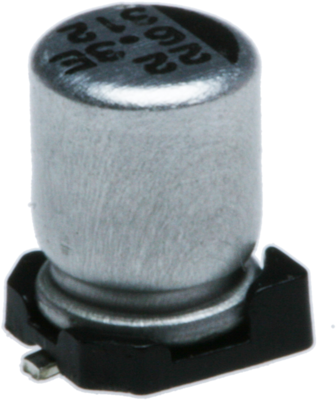

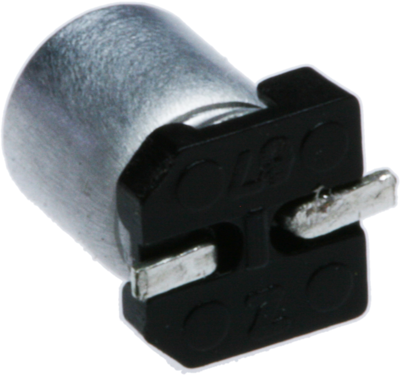

SMD aluminum electrolytic capacitor, type Teapo EV.
For surface mounting. Very low impedance
Rated voltage 6.3 VDC, type EV.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 100 µF | |

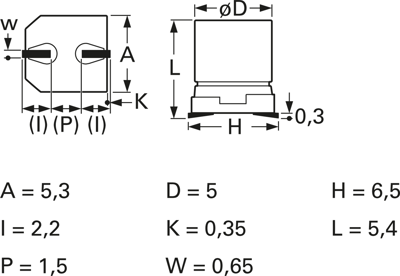

| diameter | 5 mm | |
| max. operating temperature | 105 °C | |
| Length | 5.4 mm | |
| min. operating temperature | -40 °C | |
| Ripple current | 160 mA | |
| Design | SMD | |
| Version | polar | |
| Rated voltage (DC) | 6.3 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
