SLG337M200S1A5Q30K | Teapo
Electrolytic capacitor, 330 µF, 200 V (DC), ±20 %, radial, pitch 10 mm, Ø 22 mm, SLG337M200S1A5Q30K
Unit Price (€ / pc.)
2.7132 € *
Available: 212 pcs.
Total Price:
2.71 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7132 €
10 pcs.
2.3919 €
100 pcs.
2.0944 €
250 pcs.
2.0230 €
1000 pcs.
1.8802 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type LG.
With insulated package and snap-in connection
Rated voltage 200 VDC, type LG 200.

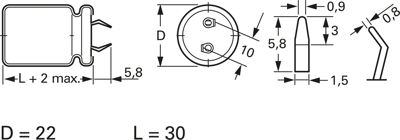

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 330 µF | |
| diameter | 22 mm | |
| max. operating temperature | 105 °C | |
| Length | 30 mm | |
| min. operating temperature | -25 °C | |
| Grid | 10 mm | |
| Ripple current | 1.2 A | |
| Design | radial | |
| Connection | snap-in | |
| Version | polar | |
| Rated voltage (DC) | 200 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
