SLG159M025S1A5S35K | Teapo

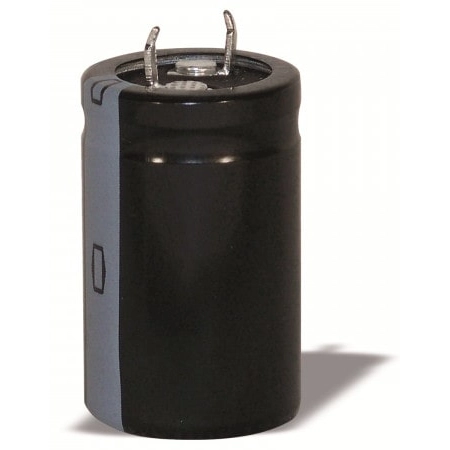

Electrolytic capacitor, 15000 µF, 25 V (DC), ±20 %, radial, pitch 10 mm, Ø 30 mm, SLG159M025S1A5S35K
Unit Price (€ / pc.)
6.3070 € *
Available: 5 pcs.
Total Price:
6.31 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3070 €
10 pcs.
5.5335 €
100 pcs.
4.8671 €
250 pcs.
4.6767 €
1000 pcs.
4.3792 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type LG.
With insulated package and snap-in connection
Rated voltage 25 VDC, type LG 25.

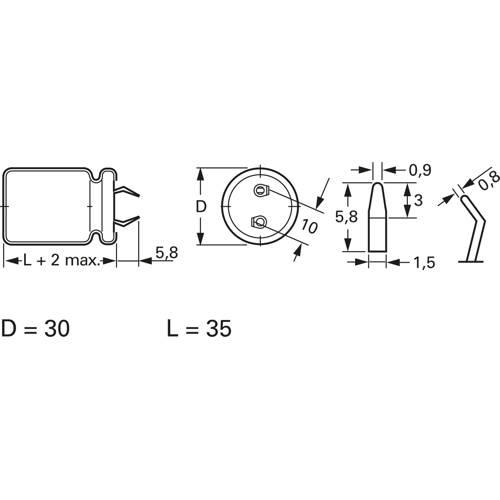

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 15000 µF | |
| Grid | 10 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Ripple current | 3.15 A | |
| Connection | snap-in | |
| diameter | 30 mm | |
| Tolerance | ±20 % | |
| Length | 35 mm | |
| Rated voltage (DC) | 25 V | |
| Version | polar | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
