SLG107M450S1A5Q40K | Teapo

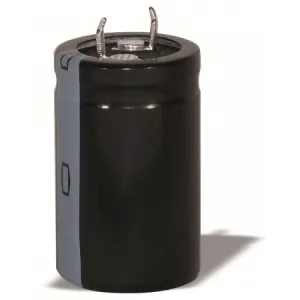

Electrolytic capacitor, 100 µF, 450 V (DC), ±20 %, radial, pitch 10 mm, Ø 22 mm, SLG107M450S1A5Q40K
Unit Price (€ / pc.)
7.3542 € *
Available: 184 pcs.
Total Price:
7.35 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3542 €
10 pcs.
5.2717 €
100 pcs.
4.4744 €
500 pcs.
3.9032 €
1000 pcs.
3.5462 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type LG.
With insulated package and snap-in connection
Rated voltage 450 VDC, type LG 450.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 100 µF | |
| diameter | 22 mm | |
| max. operating temperature | 105 °C | |
| Length | 40 mm | |
| min. operating temperature | -25 °C | |
| Grid | 10 mm | |
| Ripple current | 550 mA | |
| Design | radial | |
| Connection | snap-in | |
| Version | polar | |
| Rated voltage (DC) | 450 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
