SLG107M400S1A5Q35K | Teapo
Electrolytic capacitor, 100 µF, 400 V (DC), ±20 %, radial, pitch 10 mm, Ø 22 mm, SLG107M400S1A5Q35K
Unit Price (€ / pc.)
5.5335 € *
Available: 452 pcs.
Total Price:
5.53 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5335 €
10 pcs.
4.8909 €
100 pcs.
4.2721 €
250 pcs.
4.1055 €
1000 pcs.
3.8437 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type LG.
With insulated package and snap-in connection
Rated voltage 400 VDC, type LG 400.

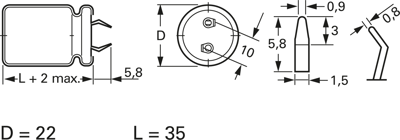

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 100 µF | |
| diameter | 22 mm | |
| max. operating temperature | 105 °C | |
| Length | 35 mm | |
| min. operating temperature | -25 °C | |
| Grid | 10 mm | |
| Ripple current | 60 mA | |
| Design | radial | |
| Connection | snap-in | |
| Version | polar | |
| Rated voltage (DC) | 400 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
