KSY477M025S1A5H12K | Teapo

Electrolytic capacitor, 470 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, KSY477M025S1A5H12K

Order No.: 11D5164
EAN: 4099879866288
MPN:
KSY477M025S1A5H12K
SY470UF/25V
Series: SY
KSY477M025S1A5H12K Teapo Electrolytic Capacitors Image 1
KSY477M025S1A5H12K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.6426 € *
Available: 4,559 pcs.
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6426 €
10 pcs.
0.3927 €
50 pcs.
0.2832 €
250 pcs.
0.2380 €
1000 pcs.
0.2035 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor in aluminum can, type Teapo SY.

With radial connections and low ESR

Rated voltage 25 VDC.

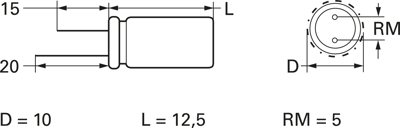

Technical specifications
Filter Property Value
Capacity 470 µF
diameter 10 mm
max. operating temperature 105 °C
Length 12.5 mm
min. operating temperature -40 °C
Grid 5 mm
Ripple current 1.05 A
Design radial
Version polar
Rated voltage (DC) 25 V
Tolerance ±20 %
Logistics
Property Value
Customs tariff number 85322200
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
