KSY477M016S1A5G15K | Teapo

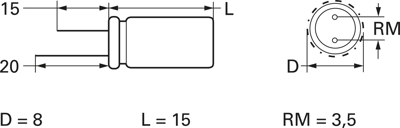

Electrolytic capacitor, 470 µF, 16 V (DC), ±20 %, radial, pitch 3.5 mm, Ø 8 mm, KSY477M016S1A5G15K

Order No.: 11D5152
EAN: 4099879866240
MPN:
KSY477M016S1A5G15K
SY470UF/16V
Series: SY
KSY477M016S1A5G15K Teapo Electrolytic Capacitors Image 1
KSY477M016S1A5G15K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Available: 524 pcs.
Next delivery: 500 pcs. on 2026-04-30
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4760 €
10 pcs.
0.2975 €
50 pcs.
0.2130 €
250 pcs.
0.1773 €
1000 pcs.
0.1523 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor in aluminum can, type Teapo SY.

With radial connections and low ESR

Rated voltage 16 VDC.

Technical specifications
Filter Property Value
Capacity 470 µF
diameter 8 mm
max. operating temperature 105 °C
Length 15 mm
min. operating temperature -40 °C
Grid 3.5 mm
Ripple current 840 mA
Design radial
Version polar
Rated voltage (DC) 16 V
Tolerance ±20 %
Logistics
Property Value
Customs tariff number 85322200
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
