KSY476M063S1A5G11K | Teapo

Electrolytic capacitor, 47 µF, 63 V (DC), ±20 %, radial, pitch 3.5 mm, Ø 8 mm, KSY476M063S1A5G11K

Order No.: 11D5180
EAN: 4099879866349
MPN:
KSY476M063S1A5G11K
SY47UF/63V
Series: SY
KSY476M063S1A5G11K Teapo Electrolytic Capacitors Image 1
KSY476M063S1A5G11K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available: 327 pcs.
Next delivery: 500 pcs. on 2026-04-16
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.2654 €
50 pcs.
0.1892 €
250 pcs.
0.1571 €
1000 pcs.
0.1357 €
*incl. VAT plus shipping costs
Subject to prior sale

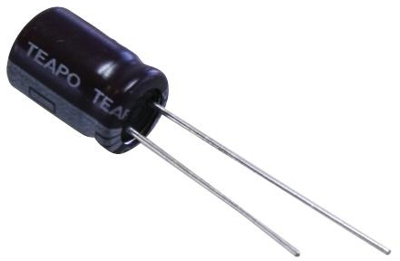

Electrolytic capacitor in aluminum can, type Teapo SY.

With radial connections and low ESR

Rated voltage 63 VDC.

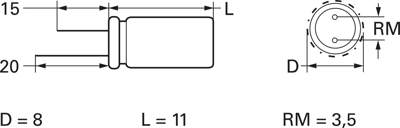

Technical specifications
Filter Property Value
Capacity 47 µF
diameter 8 mm
max. operating temperature 105 °C
Length 11 mm
min. operating temperature -40 °C
Grid 3.5 mm
Ripple current 300 mA
Design radial
Version polar
Rated voltage (DC) 63 V
Tolerance ±20 %
Logistics
Property Value
Customs tariff number 85322200
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
