KSY227M025S1A5G11K | Teapo

Electrolytic capacitor, 220 µF, 25 V (DC), ±20 %, radial, pitch 3.5 mm, Ø 8 mm, KSY227M025S1A5G11K

Order No.: 11D5162
EAN: 4099879866271
MPN:
KSY227M025S1A5G11K
SY220UF/25V
Series: SY
KSY227M025S1A5G11K Teapo Electrolytic Capacitors Image 1
KSY227M025S1A5G11K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available: 835 pcs.
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.2606 €
50 pcs.
0.1868 €
250 pcs.
0.1547 €
1000 pcs.
0.1333 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor in aluminum can, type Teapo SY.

With radial connections and low ESR

Rated voltage 25 VDC.

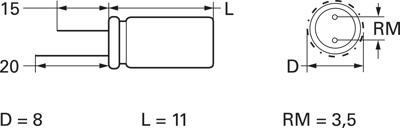

Technical specifications
Filter Property Value
max. operating temperature 105 °C
diameter 8 mm
Rated voltage (DC) 25 V
Version polar
Grid 3.5 mm
Ripple current 640 mA
Capacity 220 µF
Tolerance ±20 %
min. operating temperature -40 °C
Design radial
Length 11 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85322200
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
