KSY108M025S1A5H20K | Teapo

Electrolytic capacitor, 1000 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, KSY108M025S1A5H20K

Order No.: 11D5166
EAN: 4099879866295
MPN:
KSY108M025S1A5H20K
SY1000UF/25V
Series: SY

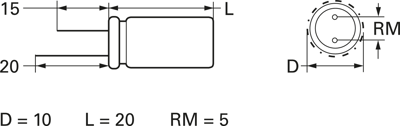

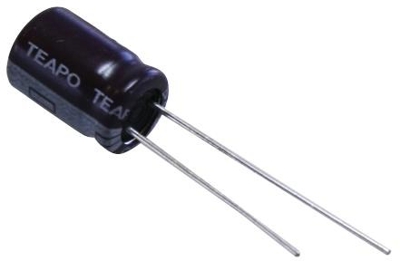

KSY108M025S1A5H20K Teapo Electrolytic Capacitors Image 1
KSY108M025S1A5H20K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.9877 € *
Available: 889 pcs.
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.6188 €
50 pcs.
0.4403 €
250 pcs.
0.3689 €
1000 pcs.
0.3094 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor in aluminum can, type Teapo SY.

With radial connections and low ESR

Rated voltage 25 VDC.

Technical specifications
Filter Property Value
Capacity 1000 µF
diameter 10 mm
max. operating temperature 105 °C
Length 20 mm
min. operating temperature -40 °C
Grid 5 mm
Ripple current 1.9 A
Design radial
Version polar
Rated voltage (DC) 25 V
Tolerance ±20 %
Logistics
Property Value
Customs tariff number 85322200
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
