KSY107M025S1A5E11K | Teapo

Electrolytic capacitor, 100 µF, 25 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm, KSY107M025S1A5E11K

Order No.: 11D5160
EAN: 4099879866264
MPN:
KSY107M025S1A5E11K
SY100UF/25V
Series: SY

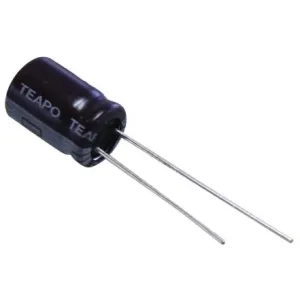

KSY107M025S1A5E11K Teapo Electrolytic Capacitors Image 1
KSY107M025S1A5E11K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.2666 € *
Available: 1,180 pcs.
Leadtime: 30 Weeks **
Total Price:
0.27 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2666 €
10 pcs.
0.1666 €
50 pcs.
0.1190 €
250 pcs.
0.1000 €
1000 pcs.
0.0845 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor in aluminum can, type Teapo SY.

With radial connections and low ESR

Rated voltage 25 VDC.

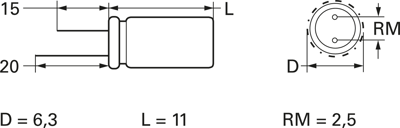

Technical specifications
Rated voltage (DC) 25 V
Capacity 100 µF
diameter 6.3 mm
Grid 2.5 mm
Length 11 mm
Version polar
Design radial
min. operating temperature -40 °C
Tolerance ±20 %
max. operating temperature 105 °C
Ripple current 340 mA
Logistics
Country of origin TW
Customs tariff number 85322200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
