KSS226M035S1A5E07K | Teapo

Electrolytic capacitor, 22 µF, 35 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm, KSS226M035S1A5E07K

Order No.: 11D4834
EAN: 4099879866110
MPN:
KSS226M035S1A5E07K
SS035M0022ST
Series: SS
KSS226M035S1A5E07K Teapo Electrolytic Capacitors Image 1
KSS226M035S1A5E07K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.2547 € *
Available: 4,230 pcs.
Next delivery: 2,000 pcs. on 2025-06-30
Leadtime: 30 Weeks **
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2547 €
10 pcs.
0.1595 €
50 pcs.
0.1142 €
250 pcs.
0.0952 €
1000 pcs.
0.0821 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type SS.

With radial connections

Rated voltage 35 VDC, type SS 35.

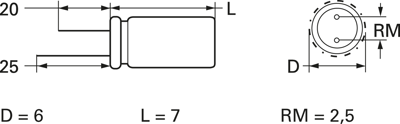

Technical specifications
Rated voltage (DC) 35 V
Capacity 22 µF
diameter 6.3 mm
Grid 2.5 mm
Length 7 mm
Version polar
Design radial
min. operating temperature -40 °C
Tolerance ±20 %
max. operating temperature 105 °C
Ripple current 57 mA
Logistics
Country of origin CN
Customs tariff number 85322200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
