KSS106M063S1A5E07K | Teapo

Electrolytic capacitor, 10 µF, 63 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm, KSS106M063S1A5E07K

Order No.: 11D4856
EAN: 4099879866196
MPN:
KSS106M063S1A5E07K
Series: SS

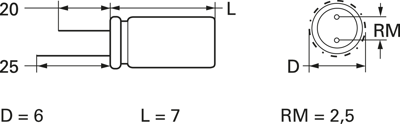

KSS106M063S1A5E07K Teapo Electrolytic Capacitors Image 1
KSS106M063S1A5E07K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.2594 € *
Available: 3,980 pcs.
Total Price:
0.26 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2594 €
10 pcs.
0.1618 €
50 pcs.
0.1178 €
250 pcs.
0.0976 €
1000 pcs.
0.0833 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type SS.

With radial connections

Rated voltage 63 VDC, type SS 63.

Technical specifications
Filter Property Value
Capacity 10 µF
diameter 6.3 mm
max. operating temperature 105 °C
Length 7 mm
min. operating temperature -40 °C
Grid 2.5 mm
Ripple current 50 mA
Design radial
Version polar
Rated voltage (DC) 63 V
Tolerance ±20 %
Logistics
Property Value
Customs tariff number 85322200
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
