KSS106M035S1A5C07K | Teapo
Electrolytic capacitor, 10 µF, 35 V (DC), ±20 %, radial, pitch 2 mm, Ø 5 mm, KSS106M035S1A5C07K
Unit Price (€ / pc.)
0.2083 € *
Available: 14,268 pcs.
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2083 €
10 pcs.
0.1809 €
100 pcs.
0.1297 €
300 pcs.
0.0928 €
1000 pcs.
0.0785 €
*incl. VAT plus shipping costs
Subject to prior sale

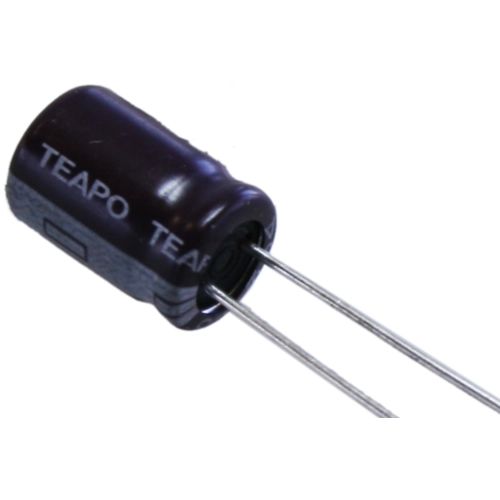

Electrolytic capacitor, insulated aluminum can, type SS.
With radial connections
Rated voltage 35 VDC, type SS 35.

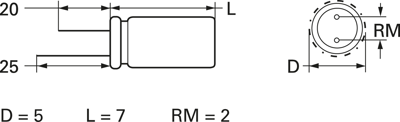

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 10 µF | |
| diameter | 5 mm | |
| max. operating temperature | 105 °C | |
| Length | 7 mm | |
| min. operating temperature | -40 °C | |
| Grid | 2 mm | |
| Ripple current | 36 mA | |
| Design | radial | |
| Version | polar | |
| Rated voltage (DC) | 35 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
