KSS106M016S1A5B07K | Teapo

Electrolytic capacitor, 10 µF, 16 V (DC), ±20 %, radial, pitch 1.5 mm, Ø 4 mm, KSS106M016S1A5B07K

Order No.: 11D4810
EAN: 4099879866011
MPN:
KSS106M016S1A5B07K
SS016M0010ST
Series: SS
KSS106M016S1A5B07K Teapo Electrolytic Capacitors Image 1
KSS106M016S1A5B07K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.1904 € *
Available: 2,865 pcs.
Leadtime: 30 Weeks **
Total Price:
0.19 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1904 €
10 pcs.
0.1666 €
100 pcs.
0.1190 €
300 pcs.
0.0845 €
1000 pcs.
0.0714 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type SS.

With radial connections

Rated voltage 16 VDC, type SS 16.

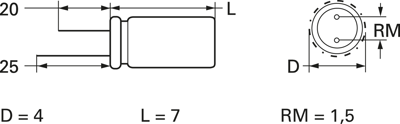

Technical specifications
Rated voltage (DC) 16 V
Capacity 10 µF
diameter 4 mm
Grid 1.5 mm
Length 7 mm
Version polar
Design radial
min. operating temperature -40 °C
Tolerance ±20 %
max. operating temperature 105 °C
Ripple current 29 mA
Logistics
Country of origin CN
Customs tariff number 85322200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
