KSS105M063S1A5B07K | Teapo

Electrolytic capacitor, 1 µF, 63 V (DC), ±20 %, radial, pitch 1.5 mm, Ø 4 mm, KSS105M063S1A5B07K

Order No.: 11D4848
EAN: 4099879866158
MPN:
KSS105M063S1A5B07K
SS063M1R00ST
Series: SS

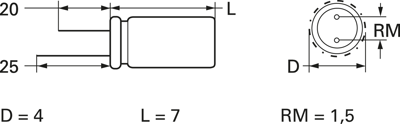

KSS105M063S1A5B07K Teapo Electrolytic Capacitors Image 1
KSS105M063S1A5B07K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.1904 € *
Available: 2,079 pcs.
Total Price:
0.19 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1904 €
10 pcs.
0.1666 €
100 pcs.
0.1190 €
300 pcs.
0.0845 €
1000 pcs.
0.0714 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type SS.

With radial connections

Rated voltage 63 VDC, type SS 63.

Technical specifications
Filter Property Value
Grid 1.5 mm
Design radial
max. operating temperature 105 °C
Version polar
Capacity 1 µF
diameter 4 mm
Ripple current 13 mA
min. operating temperature -40 °C
Tolerance ±20 %
Rated voltage (DC) 63 V
Length 7 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85322200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
