KSH477M016S1A5H12K | Teapo

Electrolytic capacitor, 470 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, KSH477M016S1A5H12K

Order No.: 11D5428
EAN: 4099879867186
MPN:
KSH477M016S1A5H12K
Series: SH

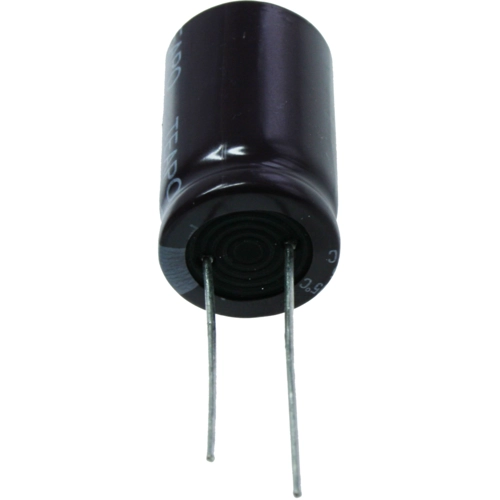

KSH477M016S1A5H12K Teapo Electrolytic Capacitors Image 1
KSH477M016S1A5H12K Teapo Electrolytic Capacitors Image 2
KSH477M016S1A5H12K Teapo Electrolytic Capacitors Image 3
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Available: 304 pcs.
Next delivery: 800 pcs. on 2025-08-14
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
10 pcs.
0.3058 €
50 pcs.
0.2190 €
250 pcs.
0.1821 €
1000 pcs.
0.1559 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, KSH477M016S1A5H12K, TEAPO

Lead-Aluminum electrolytic capacitor

Features

  • High CV product
  • High rated voltage
  • RoHS-compatible
  • Long useful life
Technical specifications
Filter Property Value
max. operating temperature 105 °C
Length 12 mm
min. operating temperature -40 °C
Capacity 470 µF
Rated voltage (DC) 16 V
Grid 5 mm
Design radial
Version polar
Ripple current 375 mA
diameter 10 mm
Tolerance ±20 %
Logistics
Property Value
Customs tariff number 85322200
Country of origin CN
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
