KSH108M035S1G5L25K | Teapo

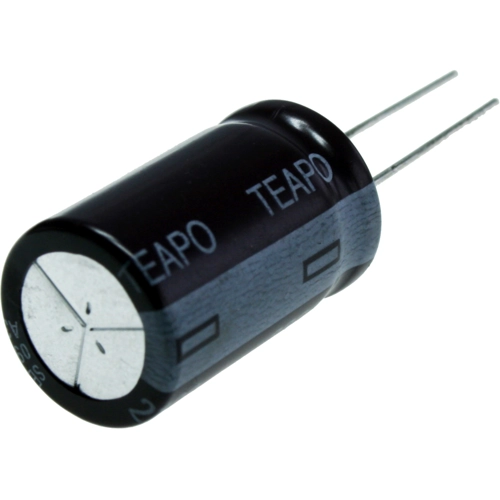

Electrolytic capacitor, 1000 µF, 35 V (DC), ±20 %, radial, pitch 5 mm, Ø 13 mm, KSH108M035S1G5L25K
Unit Price (€ / pc.)
1.2257 € *
Available: 737 pcs.
Total Price:
1.23 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2257 €
10 pcs.
0.7616 €
50 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, KSH108M035S1G5L25K, TEAPO
Lead-Aluminum electrolytic capacitor
Features
- High CV product
- High rated voltage
- RoHS-compatible
- Long useful life
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 1000 µF | |
| diameter | 13 mm | |
| max. operating temperature | 105 °C | |
| Length | 25 mm | |
| min. operating temperature | -40 °C | |
| Grid | 5 mm | |
| Ripple current | 900 mA | |
| Design | radial | |
| Version | polar | |
| Rated voltage (DC) | 35 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
