KSH107M063S1A5G15K | Teapo

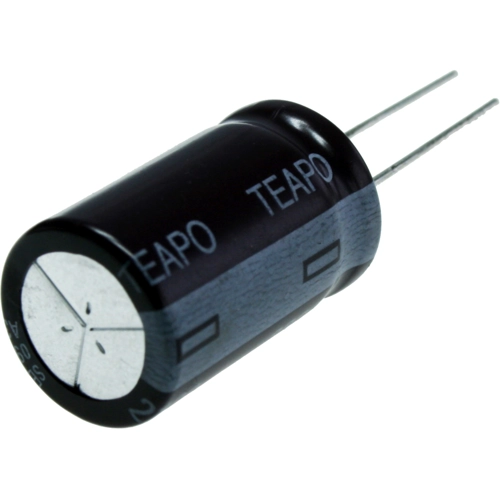

Electrolytic capacitor, 100 µF, 63 V (DC), ±20 %, radial, pitch 3.5 mm, Ø 8 mm, KSH107M063S1A5G15K
Unit Price (€ / pc.)
0.4641 € *
Available: 416 pcs.
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.2832 €
50 pcs.
0.2035 €
250 pcs.
0.1690 €
1000 pcs.
0.1440 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, KSH107M063S1A5G15K, TEAPO
Lead-Aluminum electrolytic capacitor
Features
- High CV product
- High rated voltage
- RoHS-compatible
- Long useful life
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Ripple current | 260 mA | |
| Rated voltage (DC) | 63 V | |
| Tolerance | ±20 % | |
| Design | radial | |
| diameter | 8 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Length | 15 mm | |
| Capacity | 100 µF | |
| Grid | 3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
