KSG476M400S1A5M32K | Teapo

Electrolytic capacitor, 47 µF, 400 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, KSG476M400S1A5M32K

Order No.: 11D5226
EAN: 4099879866455
MPN:
KSG476M400S1A5M32K
SG400M0047
Series: SG

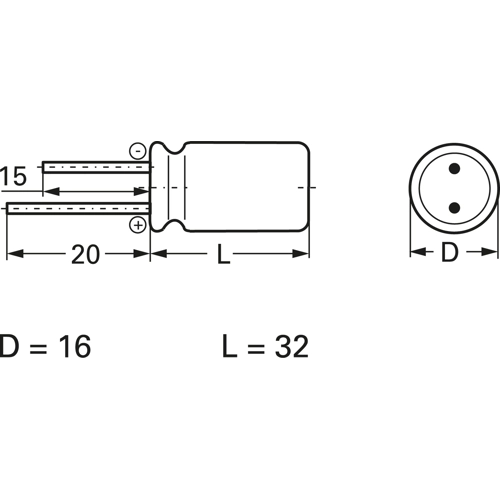

KSG476M400S1A5M32K Teapo Electrolytic Capacitors Image 1
KSG476M400S1A5M32K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
3.1178 € *
Available: 211 pcs.
Next delivery: 600 pcs. on 2025-07-15
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1178 €
10 pcs.
2.5466 €
100 pcs.
2.1301 €
250 pcs.
1.8445 €
1000 pcs.
1.6065 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type SG.

Wire connections on one side, for vertical PCB mounting. Useful life 5000 h at +105 °C.

Rated voltage 400 VDC, type SG 400.

Technical specifications
Filter Property Value
Tolerance ±20 %
Rated voltage (DC) 400 V
max. operating temperature 105 °C
Grid 7.5 mm
min. operating temperature -40 °C
Capacity 47 µF
Length 32 mm
diameter 16 mm
Design radial
Version polar
Ripple current 300 mA
Logistics
Property Value
Customs tariff number 85322200
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
