KSG226M450S1U5M25K | Teapo
Electrolytic capacitor, 22 µF, 450 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, KSG226M450S1U5M25K
Unit Price (€ / pc.)
2.8084 € *
Available: 240 pcs.
Total Price:
2.81 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8084 €
10 pcs.
2.2848 €
100 pcs.
1.9159 €
250 pcs.
1.6660 €
1000 pcs.
1.4637 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type SG.
Wire connections on one side, for vertical PCB mounting. Useful life 5000 h at +105 °C
Rated voltage 450 VDC, type SG 450.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| Ripple current | 190 mA | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |
| Version | polar | |

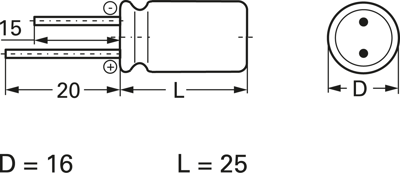

| diameter | 16 mm | |
| Rated voltage (DC) | 450 V | |
| Tolerance | ±20 % | |
| Capacity | 22 µF | |
| Design | radial | |
| Length | 25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
