KSG226M400S1G5L25K | Teapo

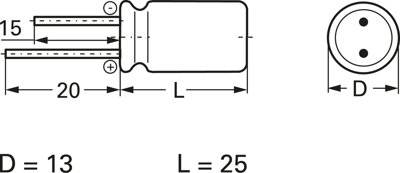

Electrolytic capacitor, 22 µF, 400 V (DC), ±20 %, radial, pitch 5 mm, Ø 13 mm, KSG226M400S1G5L25K
Unit Price (€ / pc.)
0.7973 € *
Standard delivery time from the manufacturer is: 30 Weeks
Electrolytic capacitor, insulated aluminum can, type SG.
Wire connections on one side, for vertical PCB mounting. Useful life 5000 h at +105 °C
Rated voltage 400 VDC, type SG 400.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 22 µF | |
| diameter | 13 mm | |
| max. operating temperature | 105 °C | |
| Length | 25 mm | |
| min. operating temperature | -40 °C | |
| Grid | 5 mm | |
| Ripple current | 170 mA | |
| Design | radial | |
| Version | polar | |
| Rated voltage (DC) | 400 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
