KSE685M450S1ABH20K | Teapo
Electrolytic capacitor, 6.8 µF, 450 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, KSE685M450S1ABH20K
Order No.: 11D5110
EAN: 4099879866226
MPN:
KSE685M450S1ABH20K
This item is no longer available.
As an alternative, we recommend the following item:
Electrolytic capacitor, 6.8 µF, 450 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, KSH685M450S1A5H20K
Order No.: 11D5465
Manufacturer: Teapo
per pc. 0.8449 € *
Electrolytic capacitor, insulated aluminum can, type Teapo SE.
With radial connections
Rated voltage 450 VDC, type SE 450.

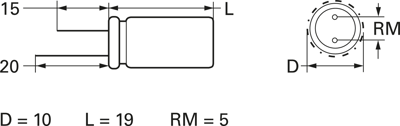

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Design | radial | |
| max. operating temperature | 105 °C | |
| Version | polar | |
| Capacity | 6.8 µF | |
| diameter | 10 mm | |
| Ripple current | 75 mA | |
| min. operating temperature | -25 °C | |
| Tolerance | ±20 % | |
| Rated voltage (DC) | 450 V | |
| Length | 19 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
