KS7335M063S1A5B07K | Teapo
Electrolytic capacitor, 3.3 µF, 63 V (DC), ±20 %, radial, pitch 1.5 mm, Ø 4 mm, KS7335M063S1A5B07K
Unit Price (€ / pc.)
0.2071 € *
Available: 1,042 pcs.
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2071 €
10 pcs.
0.1797 €
100 pcs.
0.1285 €
300 pcs.
0.0916 €
1000 pcs.
0.0762 €
*incl. VAT plus shipping costs
Subject to prior sale

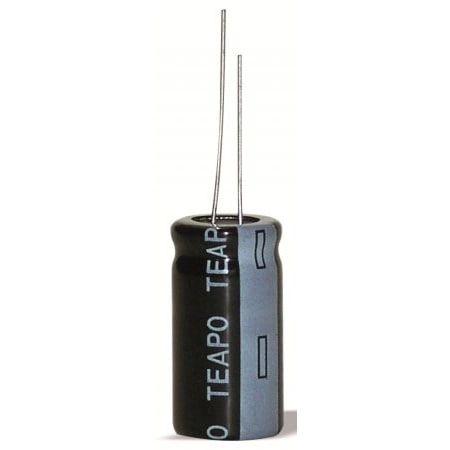

Electrolytic capacitor, insulated aluminum can, type SS.
With radial connections
Rated voltage 63 VDC, type SS 63.

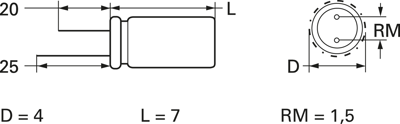

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 3.3 µF | |
| diameter | 4 mm | |
| max. operating temperature | 105 °C | |
| Length | 7 mm | |
| min. operating temperature | -40 °C | |
| Grid | 1.5 mm | |
| Ripple current | 26 mA | |
| Design | radial | |
| Version | polar | |
| Rated voltage (DC) | 63 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
