8-1879350-1 | TE Connectivity
Metal film resistor, 470 Ω, 1 W, ±5 %, 8-1879350-1
Order No.: 39P7621
EAN: 4099879693341
MPN:
8-1879350-1
RR01J470RTB
Unit Price (€ / pc.)
0.0595 € *
Available: 2,850 pcs.
Available in 5 Days: 15,000 pcs. - if ordered today
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0595 €
50 pcs.
0.0547 €
100 pcs.
0.0512 €
250 pcs.
0.0464 €
*incl. VAT plus shipping costs
Subject to prior sale

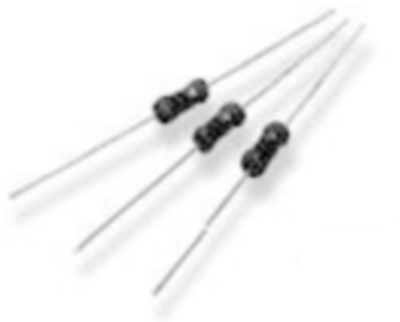

Axial, Metal film resistor type 8-1879350-1, TE Connectivity
The 8-1879350-1 is manufactured by depositing a homogeneous film of metal alloy onto a high-grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper are welded to the end-caps. The resistors are coated with a red, non-flammable lacquer, which provides electrical, mechanical and climatic protection. The coating is resistant to all cleaning solvents in accordance with MIL-STD-202, method 215 and IEC 60068-2-45.
FEATURES
- Non-flammable
- High stability, reliability and uniformity characteristics
- High power in small package
- Defined interruption behavior (fusing time)
Technical data
- Resistance: 470 Ω
- Power: 1 W
- Tolerance: ±5 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 470 Ω | |
| Tolerance | ±5 % | |
| Power | 1 W | |
| Design | axial | |
| Assembly | THT | |
| Version | metal film resistor | |
| Temperature coefficient | ±300 ppm/K | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 155 °C | |
| diameter | 2.6 mm | |
| Length | 6.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ammopack with 5,000 pieces |
| Customs tariff number | 85332100 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
