5-1625892-4 | TE Connectivity

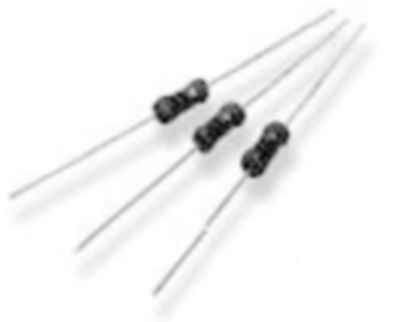

Metal oxide film resistor, 47 Ω, 3 W, ±5 %, 5-1625892-4
Order No.: 39P6947
EAN: 4099879693280
MPN:
5-1625892-4
ROX3SJ47R
Unit Price (€ / pc.)
0.1737 € *
Available: 1,300 pcs.
Available in 5 Days: 6,919 pcs. - if ordered today
Total Price:
17.37 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1737 €
250 pcs.
0.1607 €
500 pcs.
0.1488 €
1000 pcs.
0.1345 €
*incl. VAT plus shipping costs
Subject to prior sale
Metal oxide resistor, 5-1625892-4, TE Connectivity
The resistive element of 5-1625892-4 comprises a metal oxide film deposited on a ceramic former. The element is protected by a flameproof coating which will withstand overload conditions without flame or mechanical damage.
Features
- High power with small size for space saving
- Excellent long term stability
- Complete flameproof construction
- Controlled temperature capability
- Solvent resistant coat and code
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| max. operating temperature | 235 °C | |
| Version | metal oxide resistor | |
| Assembly | THT | |
| Power | 3 W | |
| diameter | 5.5 mm | |
| Tolerance | ±5 % | |
| Temperature coefficient | ±350 ppm/K | |
| Design | axial | |
| Length | 16 mm | |
| Isolation voltage | 350 V | |
| ohmic resistance | 47 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | US |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
