4-1676914-0 | TE Connectivity

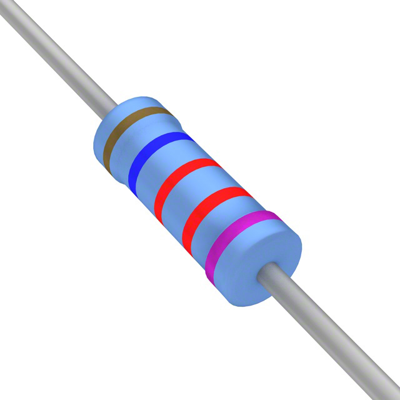

Thin film resistor, 499 Ω, 0.25 W, ±0.1 %, 4-1676914-0
Order No.: 40P1450
EAN: 4099879694409
MPN:
4-1676914-0
YR1B499RCC
Unit Price (€ / pc.)
0.2392 € *
Standard delivery time from the manufacturer is: 16 Weeks
Film fixed resistor, 4-1676914-0, TE Connectivity
The resistive element of 4-1676914-0 comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element. Metal end caps are force fitted to the element prior to spiralling to value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin is followed by three coats of epoxy resin. Tested for value and tolerance.
Features
- Precision metal film resistors with tolerance to 0.1 % and temperature coefficients to 15 ppm
- Excellent stability under load and severe environmental conditions
- Low noise current and voltage coefficients
- Precision metal film resistors are particularly suitable in all applications where long-term stability is important.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Version | thin film resistor | |
| max. operating temperature | 155 °C | |
| ohmic resistance | 499 Ω | |
| Temperature coefficient | ±15 ppm/K | |
| Power | 0.25 W | |
| Design | axial | |
| Tolerance | ±0.1 % | |
| diameter | 2.3 mm | |
| min. operating temperature | -65 °C | |
| Length | 6.3 mm | |
| Isolation voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ammopack with 2,000 pieces |
| Country of origin | US |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
