3-1630012-1 | TE Connectivity
Wirewound resistor, 150 Ω, 150 W, ±5 %, 3-1630012-1
Order No.: 39P5417
EAN: 4099879693068
MPN:
3-1630012-1
HSC150150RJ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
24.9305 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
24.93 € *
Price list
Quantity
Price per unit*
1 pcs.
24.9305 €
2 pcs.
23.3240 €
5 pcs.
21.9079 €
10 pcs.
20.3609 €
*incl. VAT plus shipping costs
Subject to prior sale

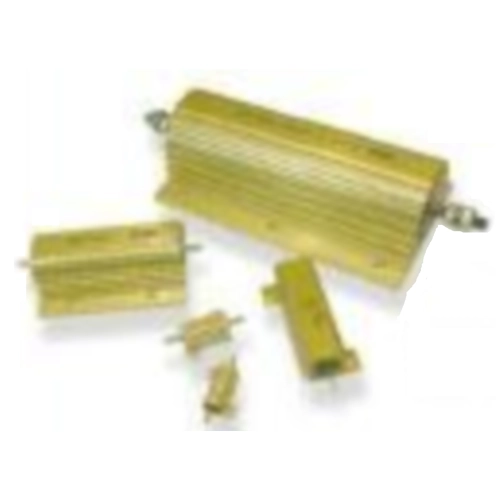

Chassis mounting, Wirewound resistor type 3-1630012-1, TE Connectivity
The 3-1630012-1 is extremely stable, high quality wire wound resistors capable of dissipating high power in a limited space with relatively low surface temperature. The power is rapidly dissipated as heat through the aluminium housing to a specified heatsink. This resistor is made from quality materials for optimum reliability and stability.
FEATURES
- Low resistance, low inductance and higher voltage
- Versatile product
- Largest range on the market
Technical data
- Resistance: 150 Ω
- Power: 150 W
- Tolerance: ±5 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 150 Ω | |
| Tolerance | ±5 % | |
| Power | 150 W | |
| Design | chassis | |
| Assembly | chassis mounting | |
| Version | wirewound resistor | |
| Temperature coefficient | ±30 ppm/K | |
| Isolation voltage | 2.5 kV | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 200 °C | |
| Length | 98 mm | |
| Width | 47.5 mm | |
| Height | 26 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
