2176248-8 | TE Connectivity

Resistor, 15 Ω, 250 W, ±5 %, 2176248-8

Order No.: 71P5250
EAN: 4099889794618
MPN:
2176248-8

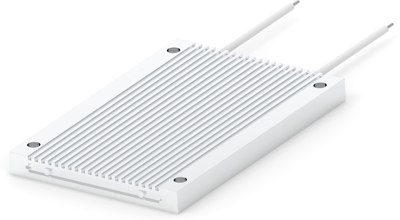

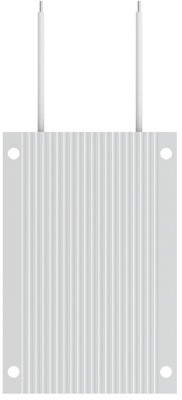

2176248-8 TE Connectivity Wirewound Resistors Image 1
2176248-8 TE Connectivity Wirewound Resistors Image 2
2176248-8 TE Connectivity Wirewound Resistors Image 3
2176248-8 TE Connectivity Wirewound Resistors Image 4
2176248-8 TE Connectivity Wirewound Resistors Image 5
Image may differ
Unit Price (€ / pc.)
51.9673 € *
Available in 5 Days: 49 pcs. - if ordered today
Total Price:
207.87 € *
Price list
Quantity
Price per unit*
4 pcs.
51.9673 €
10 pcs.
50.9915 €
*incl. VAT plus shipping costs
Subject to prior sale

Low power resistor, 2176248-8, TE Connectivity

The 2176248-8 is a high quality, high stability Aluminium housed low profile Power resistors designed for direct heat sink attachment. This product has excellent heat transfer and small dimensions.

Technical specifications
Filter Property Value
Temperature coefficient ±260 ppm/K
Assembly chassis mounting
Width 80 mm
Height 10 mm
Power 250 W
Length 180 mm
Version wirewound resistor
Design chassis
min. operating temperature -25 °C
Tolerance ±5 %
max. operating temperature 250 °C
ohmic resistance 15 Ω
Logistics
Property Value
Country of origin IN
Customs tariff number 85332900
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
