2-1879658-7 | TE Connectivity
Resistor, 200 Ω, 0.5 W, ±0.1 %, 2-1879658-7
Unit Price (€ / pc.)
1.9397 € *
Available in 5 Days: 250 pcs. - if ordered today
Total Price:
484.92 € *
Price list
Quantity
Price per unit*
250 pcs.
1.9397 €
500 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

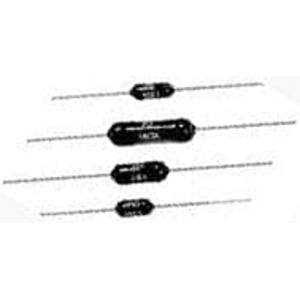

Through-hole resistor, 2-1879658-7, TE Connectivity
The 2-1879658-7 is a through-hole resistor, that utilises closely controlled production processes including the sputter coating of metal alloy films to ceramic substrates, and laser spiralling to achieve close tolerance and high stability resistor. An epoxy coating is applied for environmental and mechanical protection.
Features
- Ultra-precision - down to 0.05%
- Low TCR - down to 5ppm/°C
- Long term stability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| max. operating temperature | 155 °C | |
| Version | thin film resistor | |
| Assembly | THT | |
| Power | 0.5 W | |
| diameter | 3.7 mm | |
| Tolerance | ±0.1 % | |
| Temperature coefficient | ±15 ppm/K | |
| Design | axial | |
| Length | 10 mm | |
| ohmic resistance | 200 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
