2-1879450-9 | TE Connectivity
Wirewound resistor, 220 Ω, 500 W, ±5 %, 2-1879450-9
Order No.: 39P5923
EAN: 4099879693129
MPN:
2-1879450-9
TE500B220RJ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
82.3004 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
82.30 € *
Price list
Quantity
Price per unit*
1 pcs.
82.3004 €
2 pcs.
76.9811 €
5 pcs.
72.3163 €
10 pcs.
67.2231 €
*incl. VAT plus shipping costs
Subject to prior sale

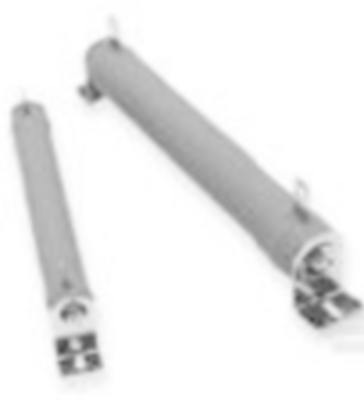

Bracket, Wirewound resistor type 2-1879450-9, TE Connectivity
The TE range of flameproof coated tubular ceramic core resistors use both standard and edge wound (corrugated) winding methods to improve power handling capability. Designed for heavy duty machinery, electrical equipment, motor control etc. requiring stability and reliability.
FEATURES
- Flameproof construction – UL94V coating
- Custom terminations
- Up to 2500 W Power rating in free air
Technical data
- Resistance: 220 Ω
- Power: 500 W
- Tolerance: ±5 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 220 Ω | |
| Tolerance | ±5 % | |
| Power | 500 W | |
| Design | chassis | |
| Assembly | chassis mounting | |
| Version | wirewound resistor | |
| Temperature coefficient | ±440 ppm/K | |
| Isolation voltage | 2.5 kV | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 225 °C | |
| diameter | 50 mm | |
| Length | 360 mm | |
| Height | 101 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
