1625960-1 | TE Connectivity
Thick film resistor, 100 MΩ, 0.4 W, ±1 %, 1625960-1
Order No.: 39P2953
EAN: 4099879692993
MPN:
1625960-1
HBA100MFZRE
Unit Price (€ / pc.)
3.6533 € *
Standard delivery time from the manufacturer is: 22 Weeks

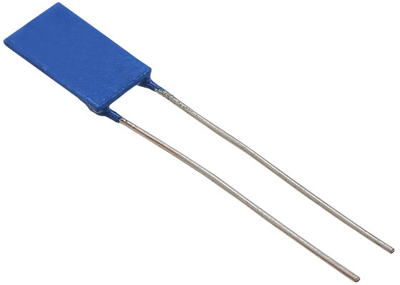

High voltage resistor, 1625960-1, TE Connectivity
The 1625960-1 is a leading supplier of standard and custom designed for value/high voltage, industrial, control, medical and general-purpose use. The device is a tough epoxy coated high voltage resistor, with axial or radial leads, values up to 1G Ohm and an operational voltage to 20 kV as standard and 30 kV to order. It is made from quality materials for optimum reliability and stability.
Features
- Up to 15 kV element voltage
- High ratio of size to power
- 1 kW to 1 GW
- Established product with proven reliability
- Low inductance
Applications
- Audio
- Communications
- Measurement
- Computing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 1 kV | |
| Width | 2.6 mm | |
| min. operating temperature | -55 °C | |
| Power | 0.4 W | |
| Version | thick film resistor | |
| Tolerance | ±1 % | |
| ohmic resistance | 100 MΩ | |
| Design | radial | |
| Temperature coefficient | ±100 ppm/K | |
| Length | 8 mm | |
| Assembly | THT | |
| Height | 12.5 mm | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Tray with 500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
