1622508-1 | TE Connectivity

Metal film resistor, 510 Ω, 0.6 W, ±1 %, 1622508-1

Order No.: 38P4757
EAN: 4099879690760
MPN:
1622508-1
LR1F510R
Series: LR
1622508-1 TE Connectivity Wirewound Resistors

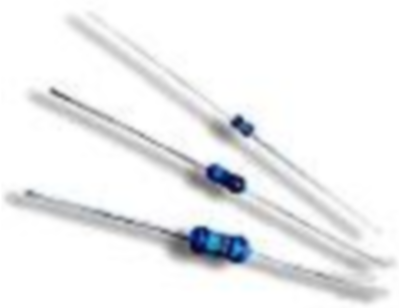

Image may differ
Unit Price (€ / pc.)
0.0833 € *
Available: 5,900 pcs.
Available in 5 Days: 4,000 pcs. - if ordered today
Total Price:
8.33 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0833 €
500 pcs.
0.0547 €
2500 pcs.
0.0393 €
10000 pcs.
0.0321 €
20000 pcs.
0.0262 €
*incl. VAT plus shipping costs
Subject to prior sale

Metal film resistor, 1622508-1, TE Connectivity

The resistive element of 1622508-1 comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element. Metal end caps are force fitted to the element prior to spiralling to value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin is followed by three coats of epoxy resin. Tested for value and tolerance.

Features

  • Superior quality metal film resistors with 1 % tolerance and temperature coefficients down to 50 ppm
  • Excellent stability under load and severe environmental conditions
  • Low noise current and voltage coefficients
Technical specifications
max. operating temperature 155 °C
Tolerance ±1 %
min. operating temperature -55 °C
diameter 2.3 mm
Temperature coefficient ±50 ppm/K
Version thin film resistor
Assembly THT
Length 6.2 mm
Design axial
Power 0.6 W
ohmic resistance 510 Ω
Isolation voltage 350 V
Logistics
Country of origin FR
Customs tariff number 85332100
Original Packaging Ammopack with 4,000 pieces
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
