1622488-1 | TE Connectivity
Metal film resistor, 47 kΩ, 0.6 W, ±1 %, 1622488-1
Unit Price (€ / pc.)
0.0214 € *
Standard delivery time from the manufacturer is: 14 Weeks

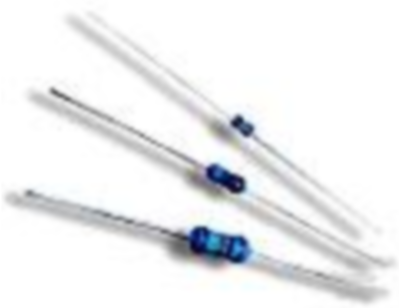

Metal film resistor, 1622488-1, TE Connectivity
The resistive element of 1622488-1 comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element. Metal end caps are force fitted to the element prior to spiralling to value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin is followed by three coats of epoxy resin. Tested for value and tolerance.
Features
- Superior quality metal film resistors with 1 % tolerance and temperature coefficients down to 50 ppm
- Excellent stability under load and severe environmental conditions
- Low noise current and voltage coefficients
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2.3 mm | |
| Temperature coefficient | ±50 ppm/K | |
| Tolerance | ±1 % | |
| Isolation voltage | 350 V | |
| Version | thin film resistor | |
| ohmic resistance | 47 kΩ | |
| Design | axial | |
| Assembly | THT | |
| max. operating temperature | 155 °C | |
| Power | 0.6 W | |
| Length | 6.2 mm | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ammopack with 4,000 pieces |
| Country of origin | DE |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
