1622395-1 | TE Connectivity
Thin film resistor, 240 kΩ, 0.6 W, ±1 %, 1622395-1
Order No.: 38P4666
EAN: 4099879690630
MPN:
1622395-1
LR1F240K
Unit Price (€ / pc.)
0.0190 € *
Standard delivery time from the manufacturer is: 15 Weeks

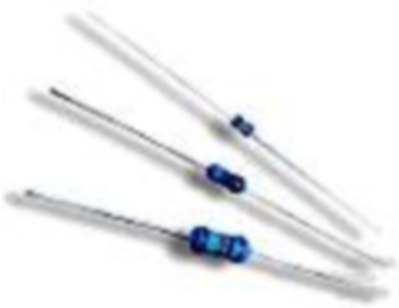

Axial, Thin film resistor type 1622395-1, TE Connectivity
The resistive element comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element. Metal end caps are force fitted to the element prior to spiralling to value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin is followed by three coats of epoxy resin. It is tested for value and tolerance.
FEATURES
- Metal film resistors have excellent stability under load and severe environmental conditions
- They exhibit very low noise current and voltage coefficients
Technical data
- Resistance: 240 kΩ
- Power: 0.6 W
- Tolerance: ±1 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2.3 mm | |
| ohmic resistance | 240 kΩ | |
| Temperature coefficient | ±50 ppm/K | |
| max. operating temperature | 155 °C | |
| Isolation voltage | 350 V | |
| Length | 6.2 mm | |
| Design | axial | |
| Power | 0.6 W | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Assembly | THT | |
| Version | thin film resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
