1622332-1 | TE Connectivity

Metal film resistor, 16 kΩ, 0.6 W, ±1 %, 1622332-1

Order No.: 38P4624
EAN: 4099879690500
MPN:
1622332-1
LR1F16K
Series: LR
1622332-1 TE Connectivity Wirewound Resistors

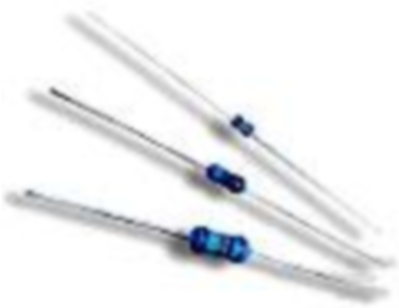

Image may differ
Unit Price (€ / pc.)
0.0369 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
442.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
12000 pcs.
0.0369 €

Axial, Thin film resistor type 1622332-1, TE Connectivity

The resistive element comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element. Metal end caps are force fitted to the element prior to spiralling to value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin is followed by three coats of epoxy resin. It is tested for value and tolerance.

FEATURES

  • Metal film resistors have excellent stability under load and severe environmental conditions
  • They exhibit very low noise current and voltage coefficients

Technical data

  • Resistance: 16 kΩ
  • Power: 0.6 W
  • Tolerance: ± 1 %
Technical specifications
Temperature coefficient ±50 ppm/K
Assembly THT
diameter 2.3 mm
Power 0.6 W
Length 6.2 mm
Version thin film resistor
Design axial
min. operating temperature -55 °C
Isolation voltage 350 V
Tolerance ±1 %
max. operating temperature 155 °C
ohmic resistance 16 kΩ
Logistics
Country of origin AT
Customs tariff number 85332100
Original Packaging Ammopack with 4,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
