1-2176163-5 | TE Connectivity

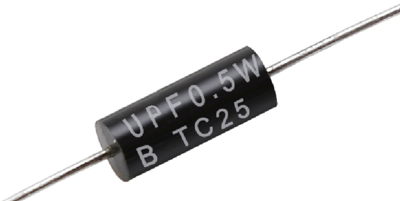

Metal film resistor, 500 Ω, 0.5 W, ±0.1 %, 1-2176163-5
Order No.: 40P1135
EAN: 4099879694317
MPN:
1-2176163-5
UPF50B500RV
Unit Price (€ / pc.)
4.4625 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
4.46 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4625 €
10 pcs.
4.1412 €
25 pcs.
3.8675 €
50 pcs.
3.5105 €
*incl. VAT plus shipping costs
Subject to prior sale
Film leaded resistor, 1-2176163-5, TE Connectivity
The high precision of 1-2176163-5, coupled with excellent stability makes it ideal for applications such as precision measurement equipment.
Features
- High precision
- Tolerance down to ± 0.02 %
- TCR down to ± 5 PPM/℃
- Excellent stability
Applications
- Precision equipment
- Measurement equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 300 V | |
| min. operating temperature | -55 °C | |
| Power | 0.5 W | |
| Version | metal film resistor | |
| diameter | 4 mm | |
| Tolerance | ±0.1 % | |
| ohmic resistance | 500 Ω | |
| Design | axial | |
| Temperature coefficient | ±5 ppm/K | |
| Length | 10.2 mm | |
| Assembly | THT | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
