2227595-1 | TE Connectivity

Mini SAS HD socket, 36 pole, press-fit, 2227595-1

Order No.: 37P2333
EAN: 4099889814262
MPN:
2227595-1

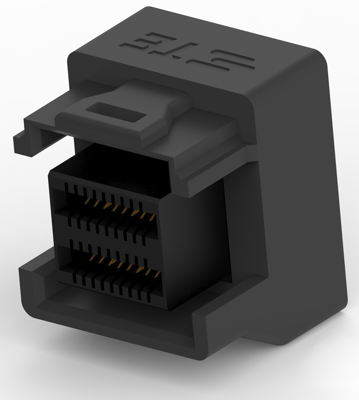

2227595-1 TE Connectivity USB Connectors, PC Connectors Image 1

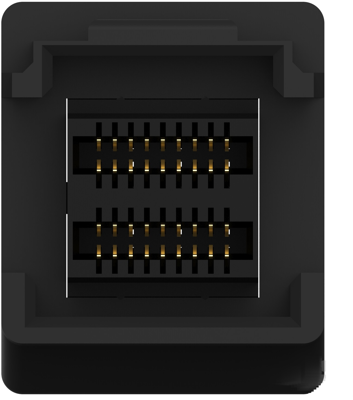

2227595-1 TE Connectivity USB Connectors, PC Connectors Image 2

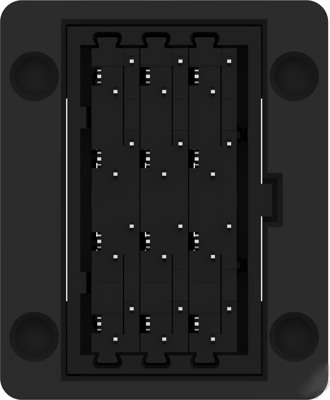

2227595-1 TE Connectivity USB Connectors, PC Connectors Image 3

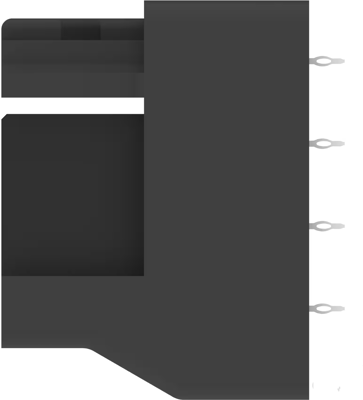

2227595-1 TE Connectivity USB Connectors, PC Connectors Image 4
Image may differ
Unit Price (€ / pc.)
7.0924 € *
Available in 5 Days: 8,706 pcs. - if ordered today
Total Price:
7.09 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0924 €
5 pcs.
6.7354 €
10 pcs.
6.2951 €
25 pcs.
5.7358 €
*incl. VAT plus shipping costs
Subject to prior sale

SAS and MiniSAS, 2227595-1, TE Connectivity

Shell: Without, SAS Connector Type: Internal Mini-SAS HD, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Stackable: No, Number of Positions: 36, Number of Rows: 4, Number of Ports: 1, PCB Mount Orientation: Vertical, Contact Base Material: Copper Alloy, Termination Method to Printed Circuit Board: Through Hole-Press-Fit, PCB Mount Retention Type: M2 Screw, Housing Color: Black, Centerline (Pitch): 0.75 mm, Height Above PC Board: 14.2 mm, High Temperature Housing: Yes, Operating Temperature Range: -55 – 85 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Box & Tray

Technical specifications
Filter Property Value
Contact connection press-fit
Assembly through-hole mounting
Version mini SAS HD
Pin number 36 pole
Logistics
Property Value
Country of origin IN
Customs tariff number 85366910
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
