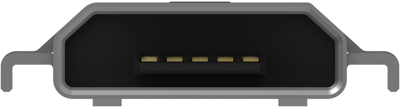

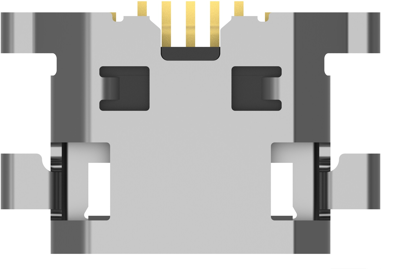

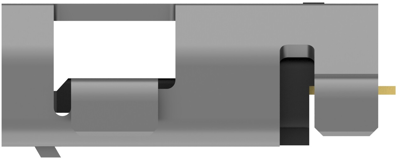

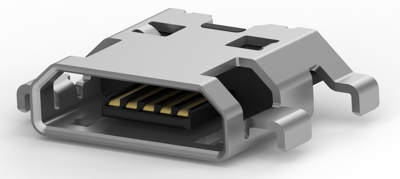

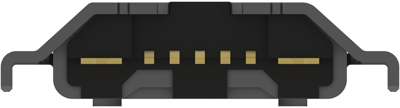

USB Connector, 2134441-2, TE Connectivity
Integral Locking Latch: Without, USB Connector Type: B, USB Version: 2.0, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Number of Ports: 1, Number of Positions: 5, Offset: 0.88 mm, Connector Profile: Micro, Shell Plating Material: Tin over Nickel, Contact Current Rating (Max): 1.8 A, Contact Mating Area Plating Thickness: 0.76 µm, Termination Method to Printed Circuit Board: Surface Mount, Locating Posts: Without, PCB Mount Location: Mid Mount, PCB Connector Seating: Offset, PCB Mount Retention Type: Hold-Down, Connector Mounting Type: Board Mount, Body Orientation: Reverse Right Angle, Centerline (Pitch): 0.65 mm, Housing Color: Black, PCB Thickness (Recommended): 0.8 – 1. mm, Soldering Temperature (Max): 260 °C, Mating Cycles (Max): 10000, Operating Temperature Range: -30 – 85 °C, Assembly Process Feature: Without Pick and Place Cover, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Tape & Reel, Packaging Quantity: 1000, Comment: Reverse Type
