2129691-1 | TE Connectivity
Panel jack, PCB connection, angled
Active
Total price
(
3.8794 €
* / pcs.)
3.88 €
Available: 22 pcs.
Quantity
Price per unit*
1 pcs.
3.8794 €
10 pcs.
3.4867 €
50 pcs.
3.0583 €
100 pcs.
2.6061 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by TE Connectivity at Bürklin Elektronik
Built-in socket, 2129691-1, TE

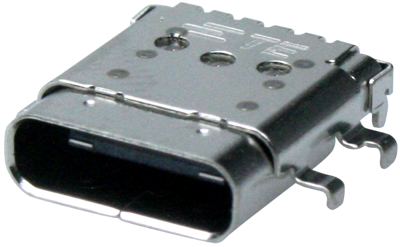

This USB C receptacle is a mid-mount hybrid made of a stainless steel shell with copper alloy contacts.
Technical specifications
| Version | C-Socket | |
| Contact connection | SMD | |
| Assembly | front panel mounting | |
| Pin number | 24 pole | |
| USB Standard | USB 3.1 |
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 1,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
